* Please note not all pictures are accurate of the trailer, and are only intended to show the accessories. *Collection Only
* Special order only - maximum 5 day lead time
- PLEASE NOTE: RETURNS AND CANCELLATIONS NOT ACCEPTED ON THIS ITEM WHEN ORDERED IN SPECIALLY

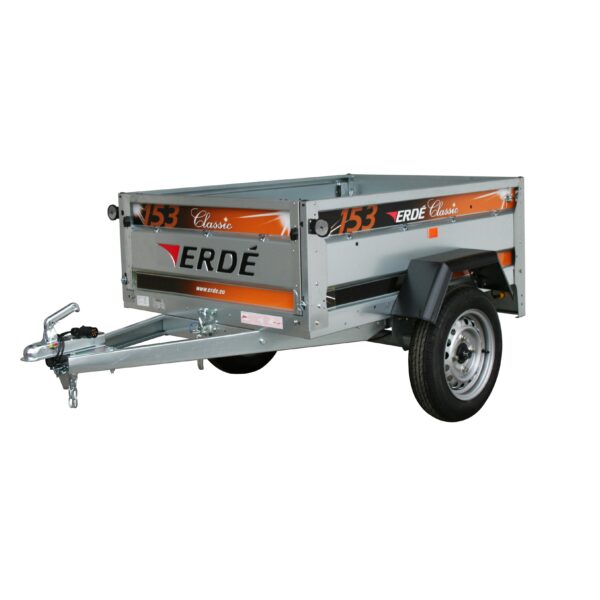

Trailer
- Maximum Gross Weight 750kg
- Side height internally = 40cm
- Tipping function
- Rear tailgate hinges downwards
- 7 pin plug electrics (adaptors available on request)
- Front panel removable
- 135 r 13 tyre size
- A frame drawbar
- Unladen Weight 124kg
- Load Capacity 526kg
- External Box Size: 150cm long, 105cm wide, Sides 48cm high
- Internal Box Size: 145cm long, 100cm wide, Sides 40cm high
- Overall dimensions including drawbar: 232cm long, 140cm wide, 93cm high
- Meets and exceeds the new type approval legislation (supplied with a Certificate of Conformity & VIN plate).
- Maintenance free rubber suspension.
- Robust, corrosion-resistant galvanised steel construction.
- Recessed lights.
- Tipping function
- Rear tailgate hinges downwards
- Front panel removable
- Extensive range of accessories and spares.
- Full Manufacturer’s Warranty and technical support.
- 7 pin plug electrics (adaptors available)
Accessories

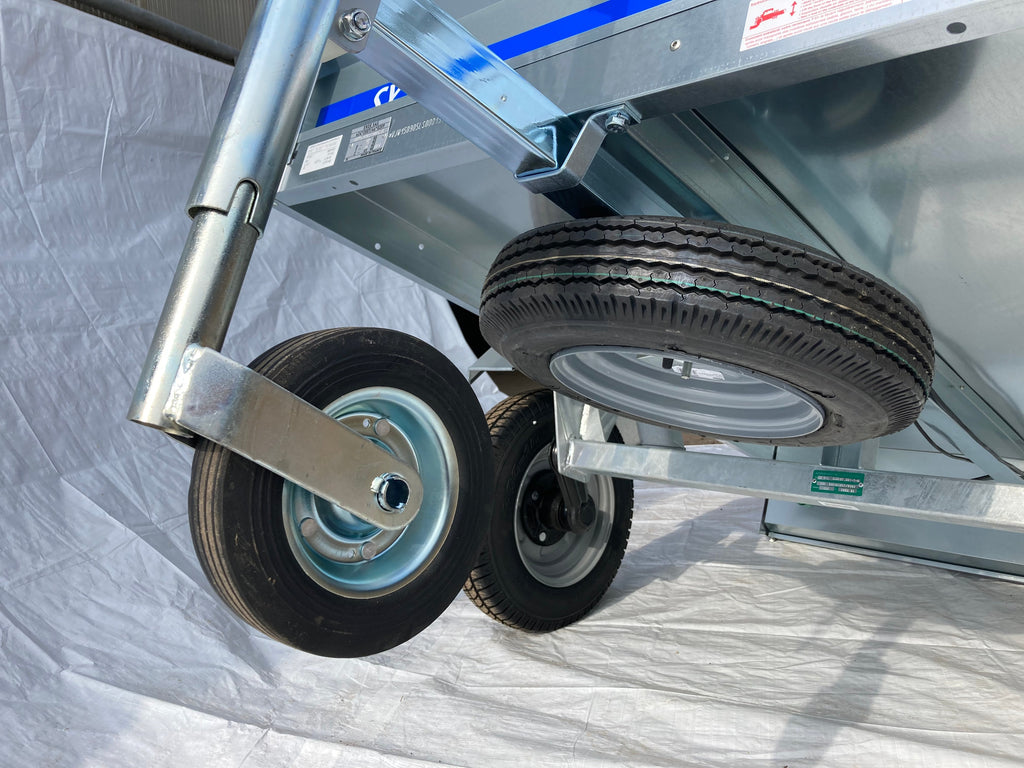

JOCKEY WHEEL AND SPARE WHEEL
- Jockey Wheel - 48mm diameter, pressed steel jockey wheel, with mounting kit (no drilling required) Maximum static nose weight 150kg, Mounted centrally behind the coupling to ensure even lifting of the trailer
- Spare Wheel - 135 r 13 complete wheel and tyre assembly, supplied with mounting bracket to enable it to be fitted to the side of the trailer.
STANDARD COVER
30CM HIGH FRAME AND COVER
- Durable tubular steel frame with reinforced PVC cover
- The most economic way to double load space in the trailer
- Cover protects trailer contents from the weather
- Easily fitted and secured, no bolts required
- Please note, unlike the mesh kit and cover, this will not take any load against the sides.
SOLID SIDE EXTENSIONS
- Increase the height of the sides by an additional 40cm
- Can be used with standard covers, ABS hard covers, and load bars fitted on top of these sides.
- Rear panel is hinged from the top of the existing trailers tailgate to allow for access to the load area.
60CM MESH SIDE EXTENSIONS (AND OPTIONAL COVER)
- Adds an additional 60cm in height
- Easily fitted and secured with the fixing bolts supplied.
- Rear panel can be hinged or removed in order to gain access to the load area.
- Optional PVC cover comes with an 'Apex' structure to prevent water from pooling, the cover extends below the level of the mesh sides and has covered zips to prevent water ingress.
- Zipped at rear so you can access the load without having to remove the entire cover.
- Easily fitted and secured with elasticated hems.

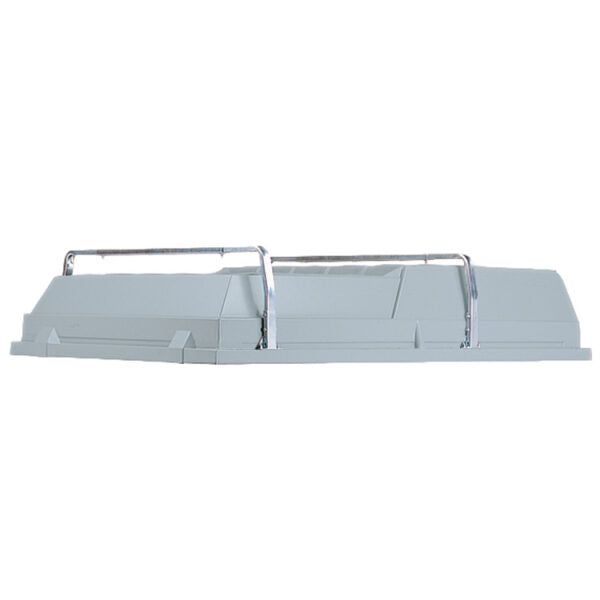

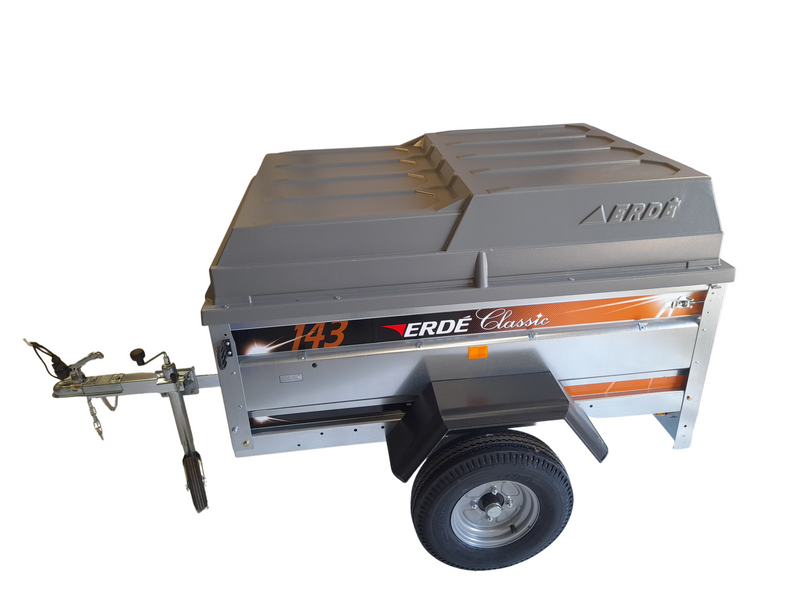

LOCKABLE ABS HARD COVER (AND OPTIONAL LOAD BARS)
- Integral gas strut keeps lid open during loading and makes opening and closing easier
- The hard top increases the height of the trailer by approx. 20cm at the front of the trailer and 25cm at the rear due to its stepped design
- Supplied with 4 keys
- Optional load bars can be fitted to enable bike racks or roof boxes to be mounted
- Maximum carrying capacity of load bars is 75kg
LOAD BARS FOR TRAILERS, MESH SIDES, AND SOLID SIDES
- Please note: These are not suitable for ABS hard covers and cannot be used in conjunction with the standard cover
- Heavy duty galvanised steel construction
- Easily fitted directly to the trailer side panels or High Side Extension Kits
- Ideal for carrying cycle racks
- Rated for 60kg
LADDER RACK
- Galvanised steel construction
- Easily fitted with bolts supplied
- Rated for 35kg
